Foil Heat Induction Seal Liners

Foil Heat Induction Seal Liners

Name:Two piece foil heat induction seal liner
Type:Two piece Series
Application:For sealing of PET/PP/PE/PVC/Glass containers.
Thickness:0.6mm 1mm
Structure:Backing+wax+aluminum foil+heat seal
paperboard+wax+PET+aluminum foil+PET+ heat seal
Cardboard+wax+PET+printed paper+aluminum foil+PET+Heat seal
Custom
Die cut size:diameter: 15mm~120mm
Roll Width :360mm 390mm or custom
MOQ:50000pcs/size for rolls 500㎡/type
Service:Free samples
Custom sizes&printings
Fast reply within 24 hours

Product Introduction

Foil heat induction seal liners

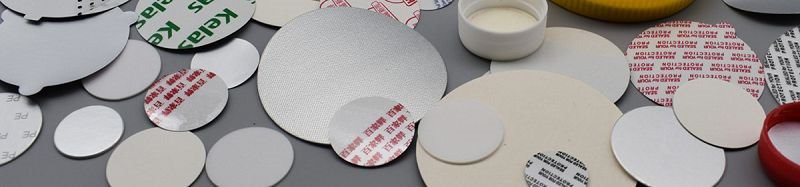

Heat induction seal(001)


What is foil heat induction seal liners

The quality of modern life is getting higher and higher. Consumers not only pursue the quality and beauty of packaging, but are more concerned about the safety of packaging, and then the ease of use and comfort. Aluminum foil is a safe and hygienic packaging material. After compounding and printing process, it achieves beautiful and easy tearing effect. Aluminum foil sealing film is loved by consumers and occupies an indispensable position in the packaging market.


Foil heat induction seal liners one of aluminum foil packaging. Its working principle is to heat the aluminum foil layer in the bottle cap through electromagnetic induction, and the metal aluminum is instantly hot to melt the adhesive layer on the seal liner to the bottle mouth and integrate it, so as to achieve the purpose of beautiful and firm product sealing.


How to use it?

1 induction foil liner(001)(001)

Step 1:

Added induction foil liners inside caps,the cardboard side

face to bottom of cap, and aluminum foil side face to outside.

Make sure the liner is placed flat and not easy to fall.

Step 2:

Fill and cap the container with an induction-lined

closure,

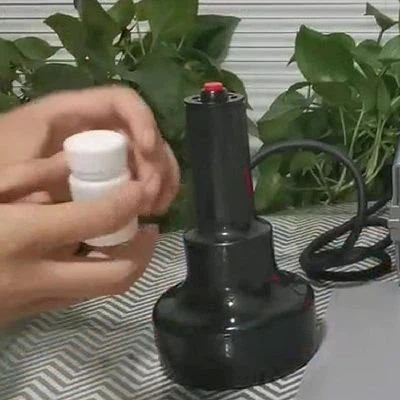

2 induction sealing liner(001)(001)
3 foil liner(001)(001)

Step 3:

Pass the container underneath the induction sealing

system. The non-contact heating process welds the

liner to the container creating a hermetic seal.

Step 4:

If it is two piece foil heat induction seal liner, the

cardboard backing will be separated automaticly

and left into cap, aluminum foil stick on bottle lip.

4induction foil liner(001)(001)


Specification:

Name

Two piece foil heat induction seal liner

Type

Two piece Series

Application

For sealing of PET/PP/PE/PVC/Glass containers.

Thickness

0.6mm 1mm

Structure

Backing+wax+aluminum foil+heat seal

paperboard+wax+PET+aluminum foil+PET+ heat seal

Cardboard+wax+PET+printed paper+aluminum foil+PET+Heat seal

Custom

Die cut size

diameter: 15mm~120mm

Roll Width

360mm 390mm or custom

MOQ

50000pcs/size for rolls 500㎡/type

Service

Free samples

Custom sizes&printings

Fast reply within 24 hours
